Structural Glass Walls

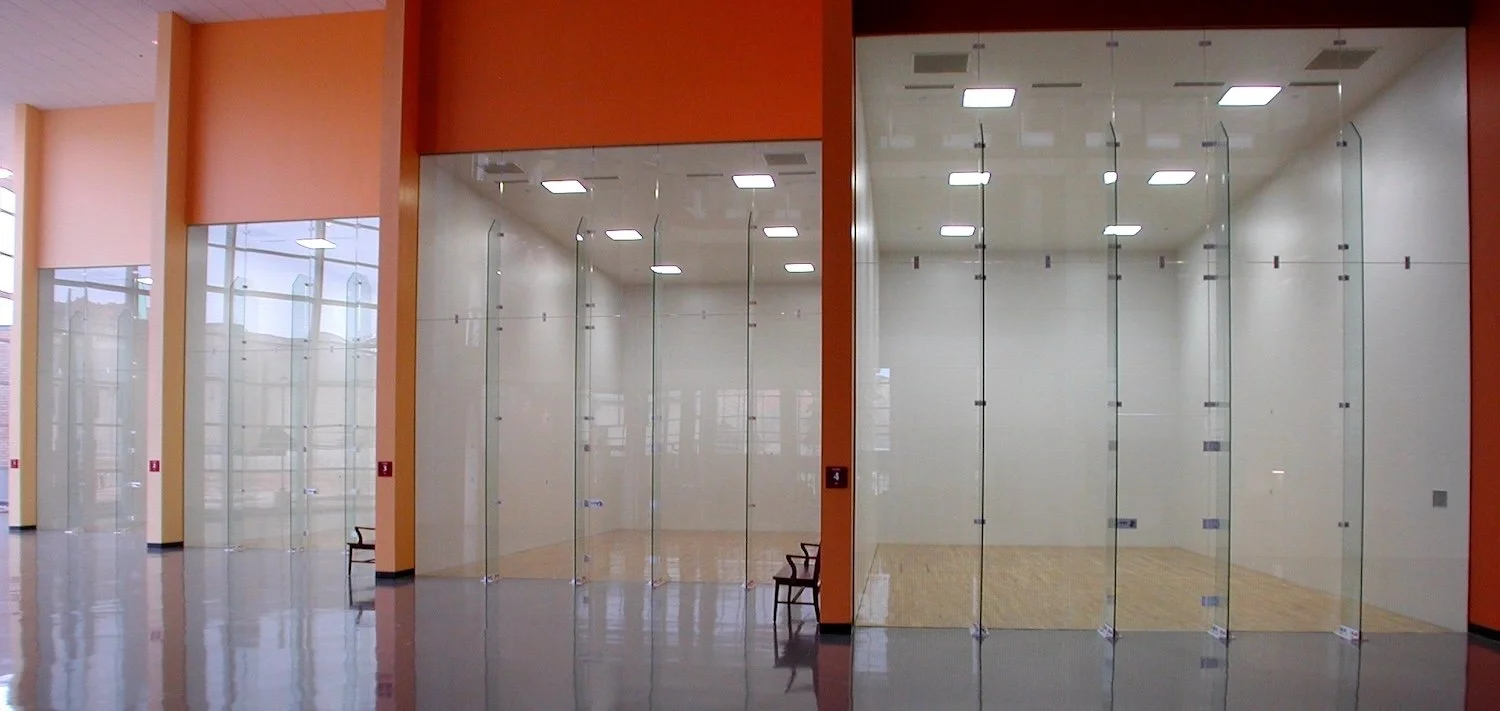

Showcasing a project by DOUBLEPLAY: Empty glass-walled rooms in a modern building, with few chairs and reflective floors.

Structural Fin Walls

DOUBLEPLAY structural walls are strong, safe and aesthetically pleasing. Our superior choice of materials, patented engineered designs and high-gloss finish make DOUBLEPLAY walls the premier choice for squash, racquetball and handball courts.

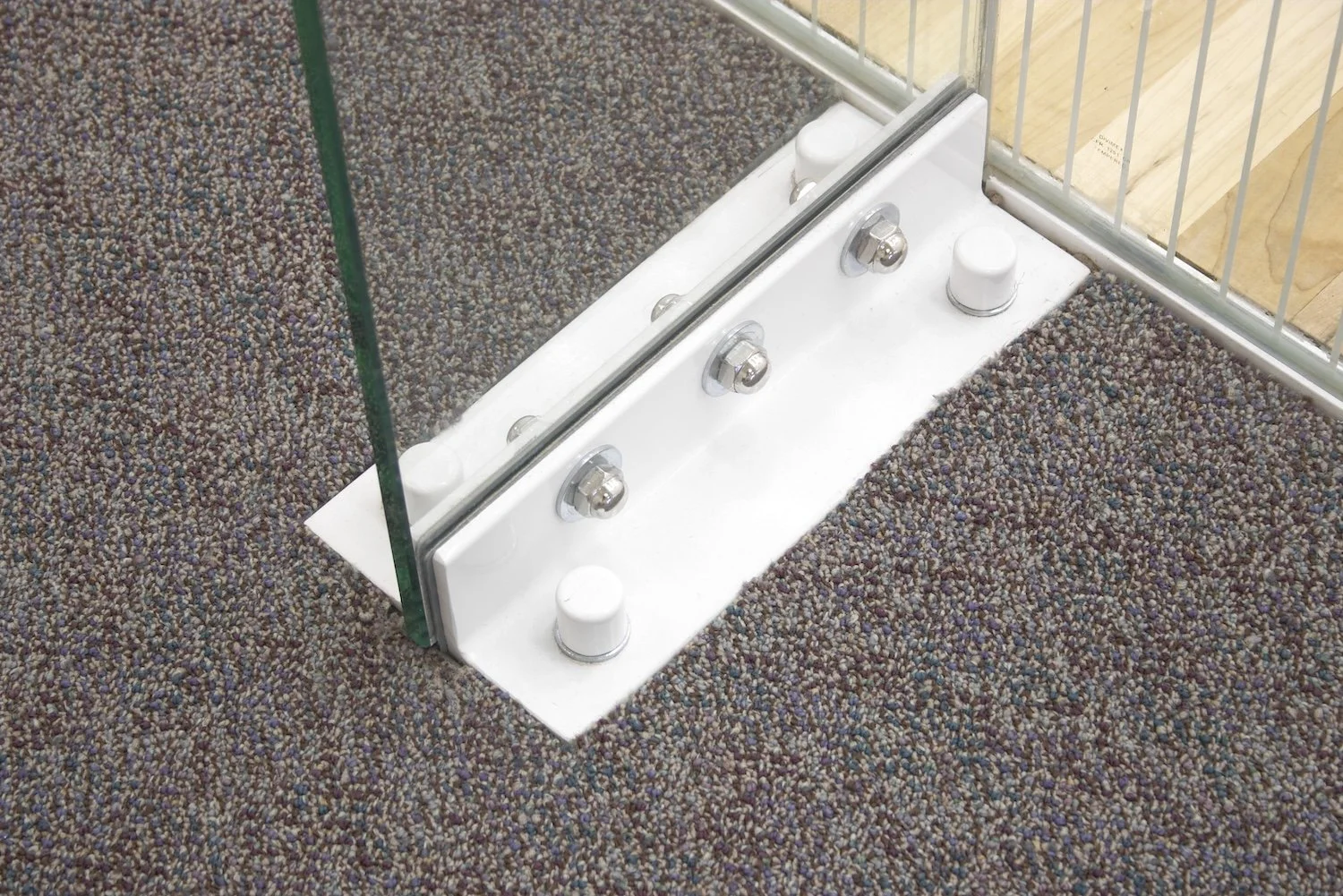

Design feature by DOUBLEPLAY: Close-up of a metal and glass bracket with a white base, four screws, two white knobs, and a glass panel, placed on speckled brown and gray carpet, with a background of boxed wooden panels and metal framing.

Extruded Aluminum Hardware

All hardware components are manufactured from aluminum extrusions and are insulated from the glass with clear polypropylene gaskets. Aluminum is infinitely superior to the plastic nylon used by other manufacturers.

The DOUBLEPLAY glass hardware is unique in that the holes through which the bolts pass are threaded. This feature is significant to both the strength of the system and the installation process. Other systems rely solely on the bolt and nut to hold the glass in place. The DOUBLEPLAY system uses the strength of the entire component to secure the glass panels, doors and fins to its supporting hardware.

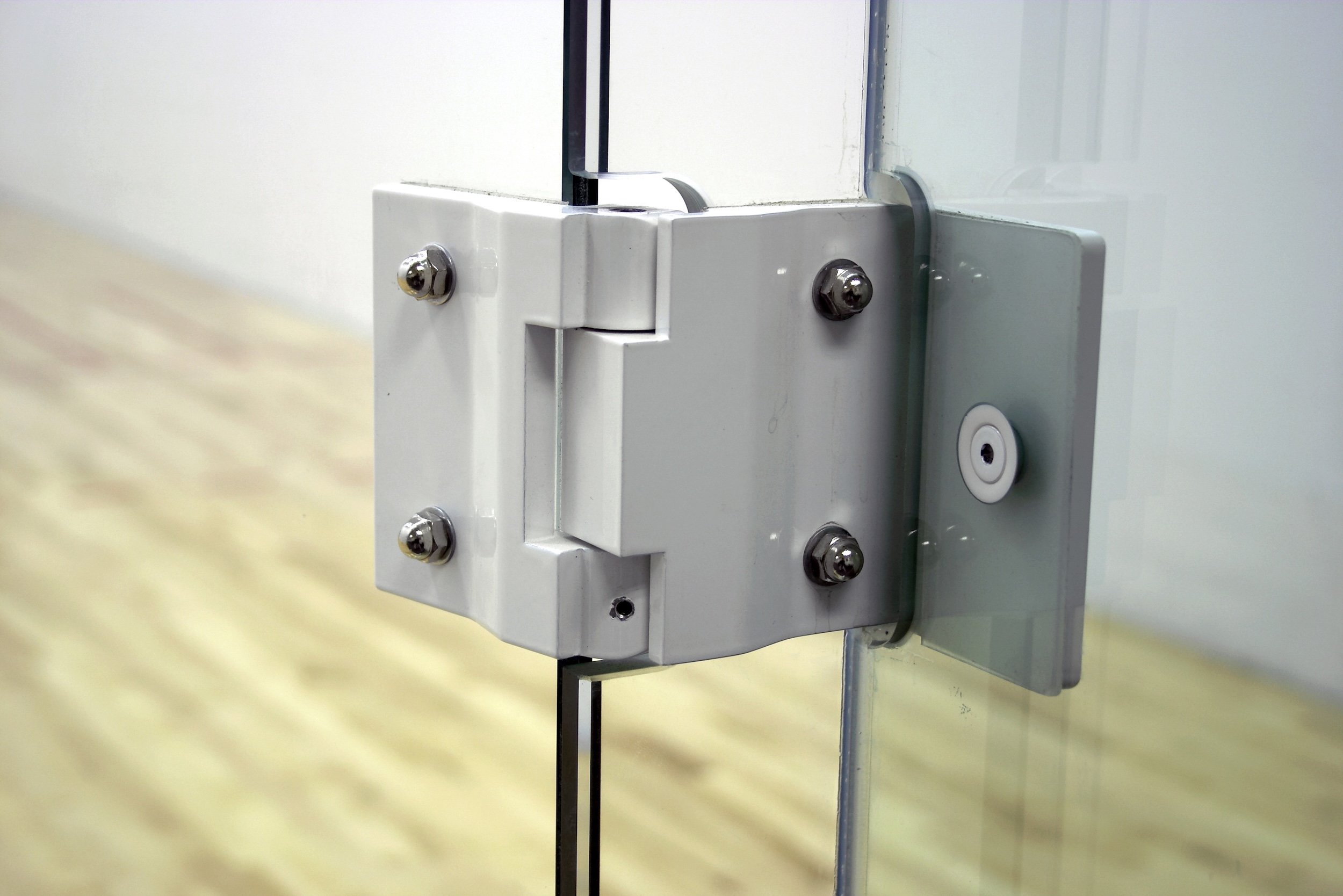

Design feature by DOUBLEPLAY: Close-up of a glass door hinge with metal bolts and a white frame, seen from a low angle.

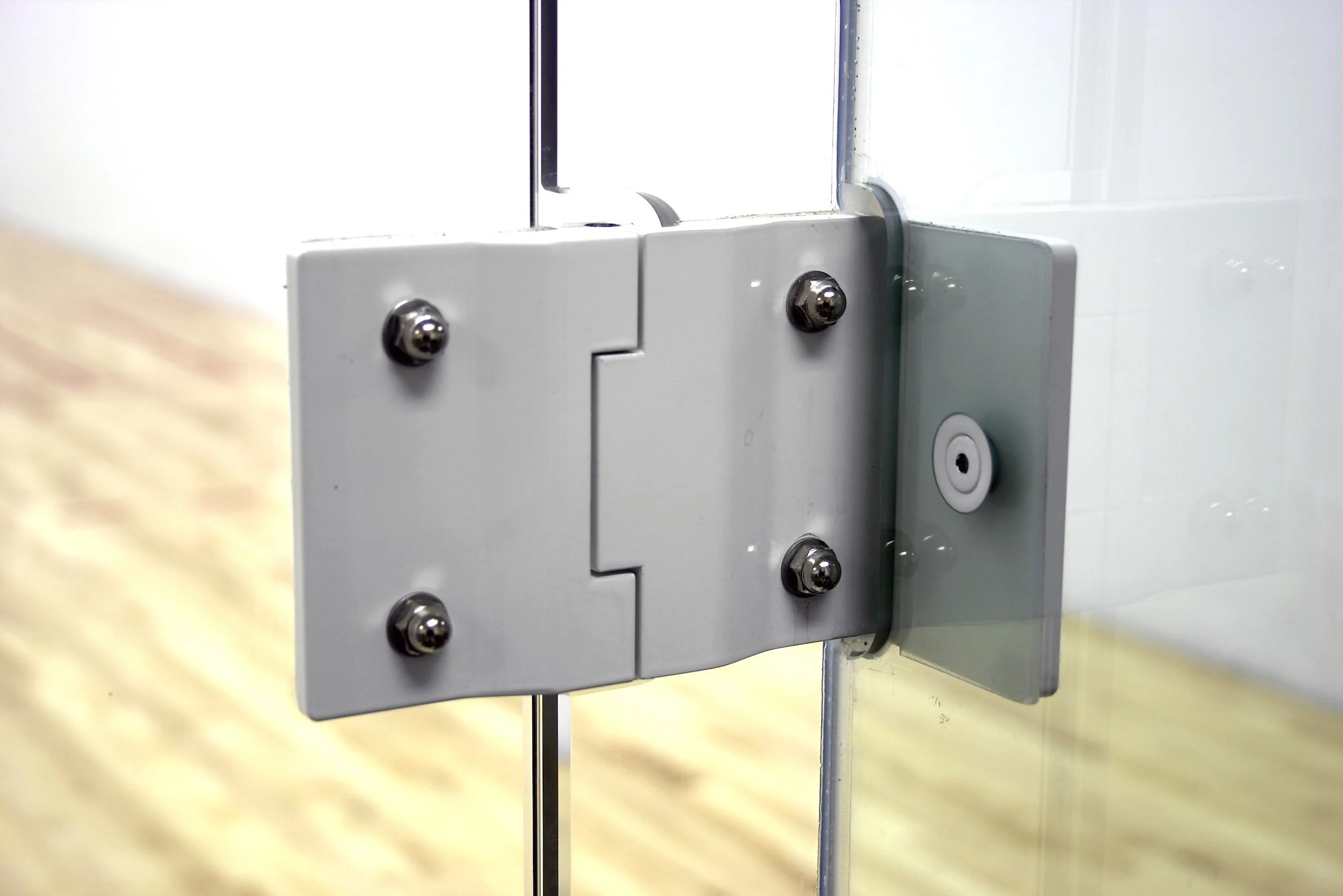

Design feature by DOUBLEPLAY: Close-up of metallic hinges and a lock on a glass door.

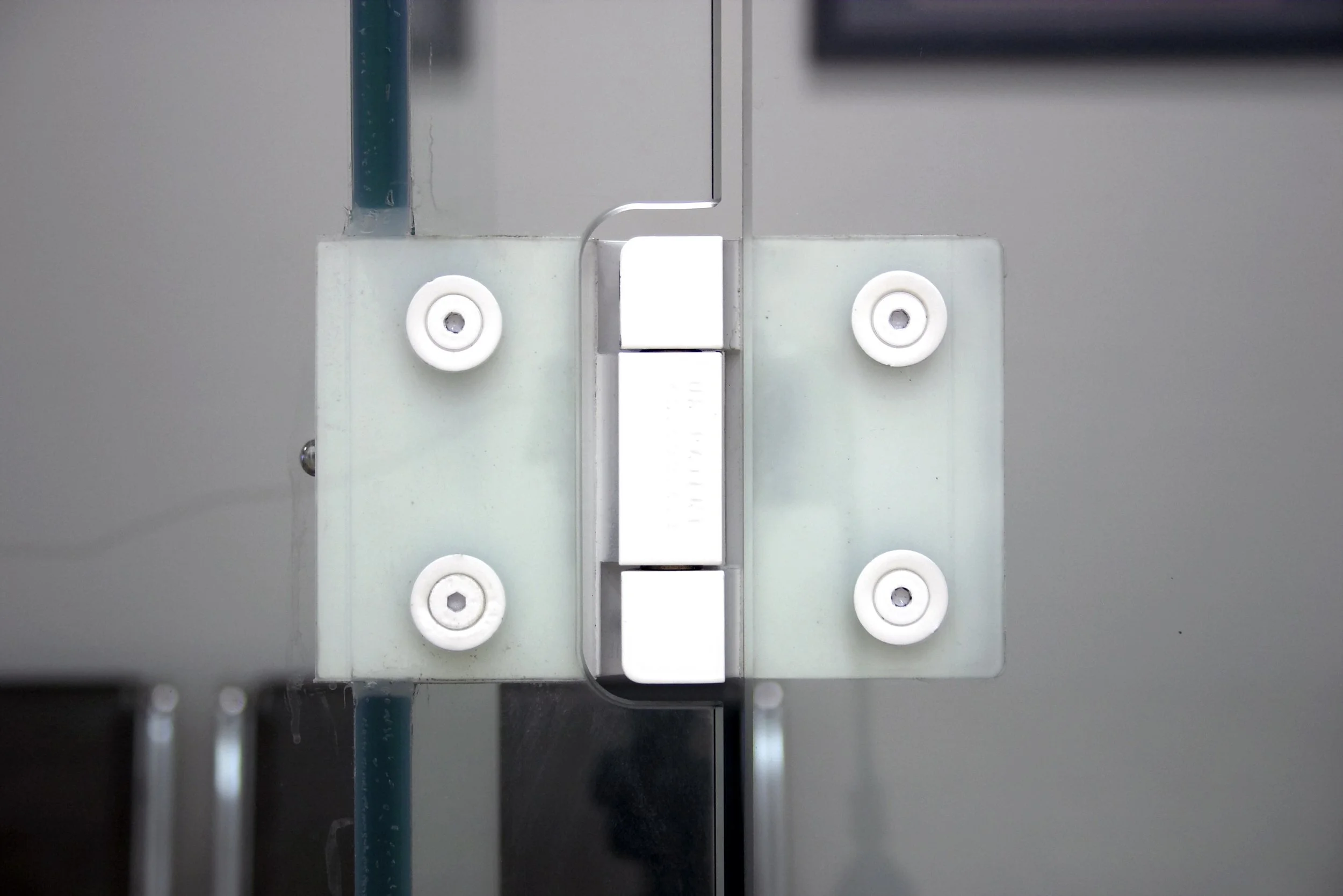

Design feature by DOUBLEPLAY: Close-up of a metallic hinge with four white screws and a white rectangular component, part of a mechanical or electronic device.

Patented Hinge Design

Our patented hinge design attaches to the door, stabilizing fin & adjacent side panel, thereby distributing impact forces from the inside of the court to the concrete floor below. Another feature of our patented system is the “wrap-around” feature. By passing the hinge flange behind the stabilizing fin, the weight of the door is supported, not by nuts and bolts, but by the entire surface of the flange. This completely eliminates the possibility of door sagging. The unique pivot location of the DOUBLEPLAY hinge eliminates the gap created between the edge of the door and the edge of the adjacent sidelight panel. When the door opens, the edge remains close to the edge of the panel, and no portion of the door swings inward towards the hallway. In addition to a significant safety benefit, there will never be interference with floor coverings on the court exterior.

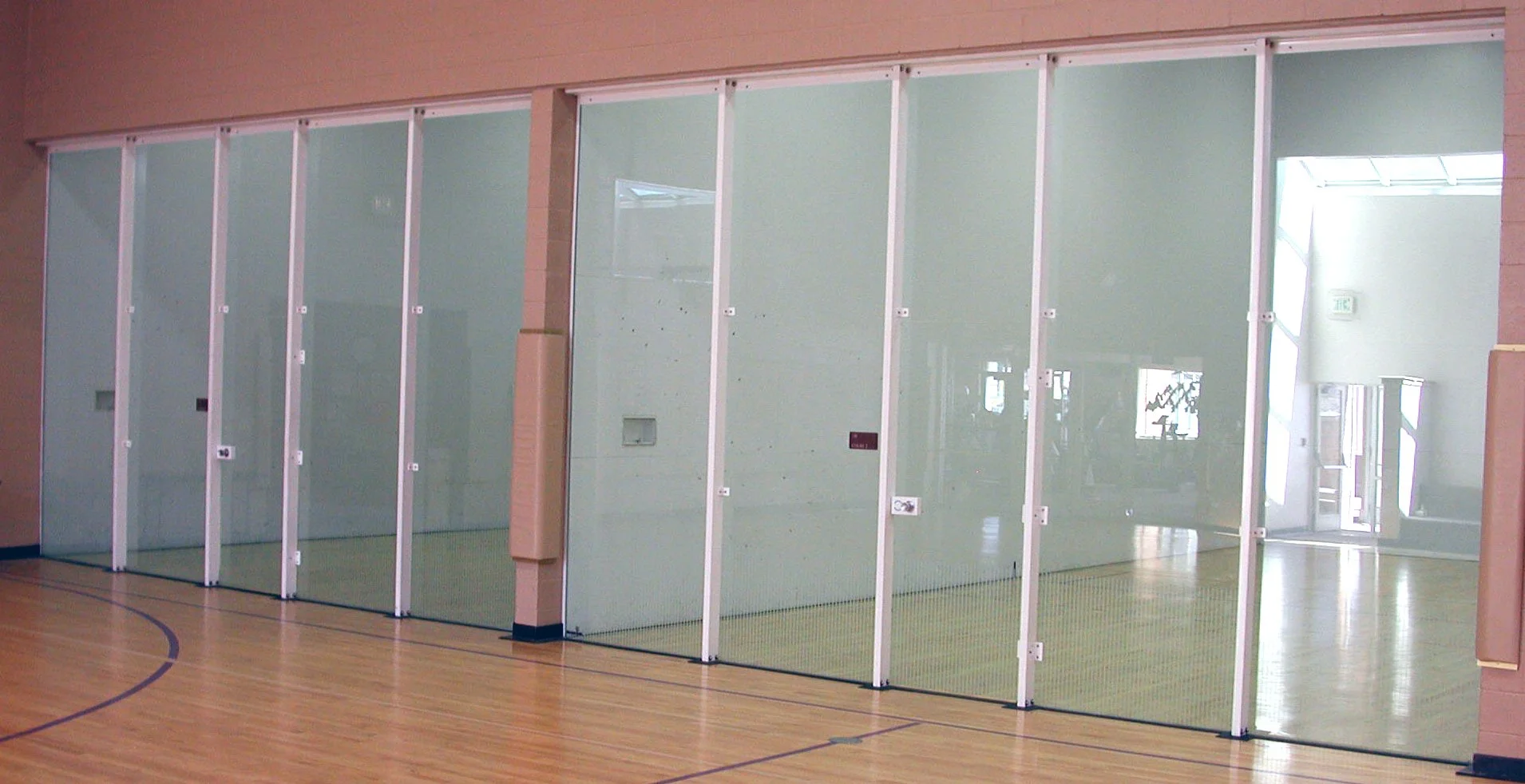

Showcasing a project by DOUBLEPLAY: Indoor sports facility with glass walls and a wooden floor, separated into multiple sections for different activities or classes.

Post Walls

The vertical support posts on DOUBLEPLAY post wall systems are anchored to the floor and header using a special block, which resides inside the post. The block is first anchored to the floor and header, then the post is slid into place over the block.

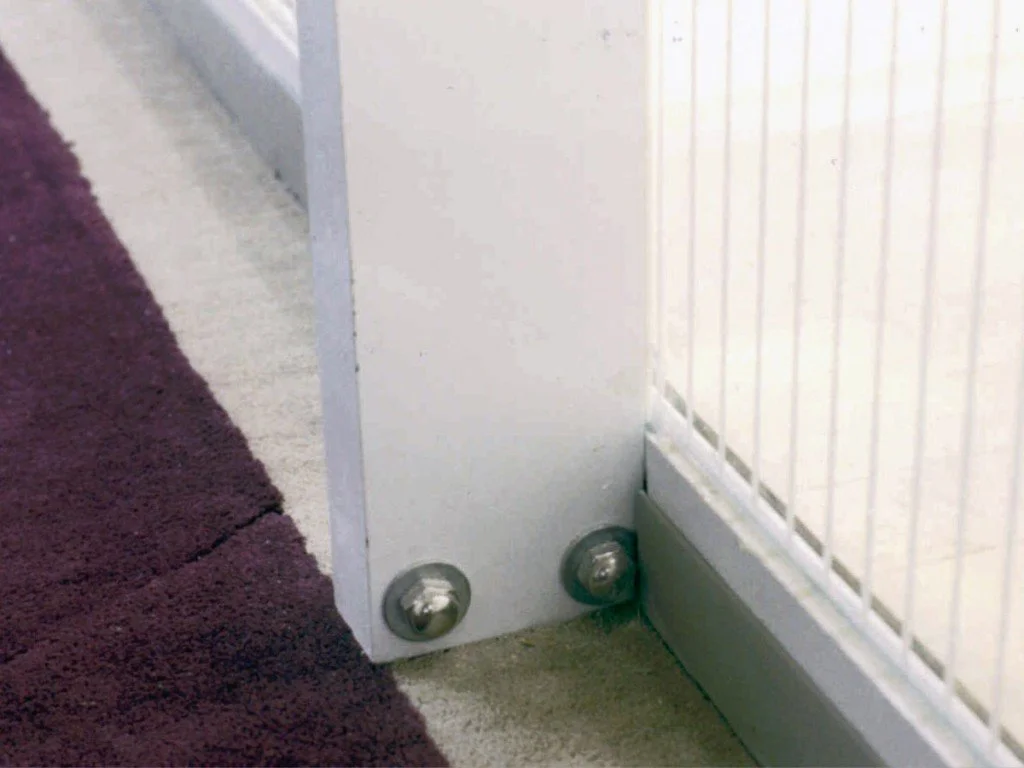

Design feature by DOUBLEPLAY: Close-up of the bottom corner of a piece of furniture or appliance with two visible metal fasteners, at the junction of a beige carpet, a purple rug, and a wall with vertical white paneling.

Concealed Post Anchor

The block is completely concealed from view. Other systems use external angle irons that straddle the post and are anchored to the floor and header on opposite sides, creating a bulkier appearance. This feature helps in creating the clean and streamlined look typical of all DOUBLEPLAY glass wall designs.
Our posts are powder-coated brilliant white to match all of the other hardware components. Other manufacturers supply only clear anodized mill finish posts.
